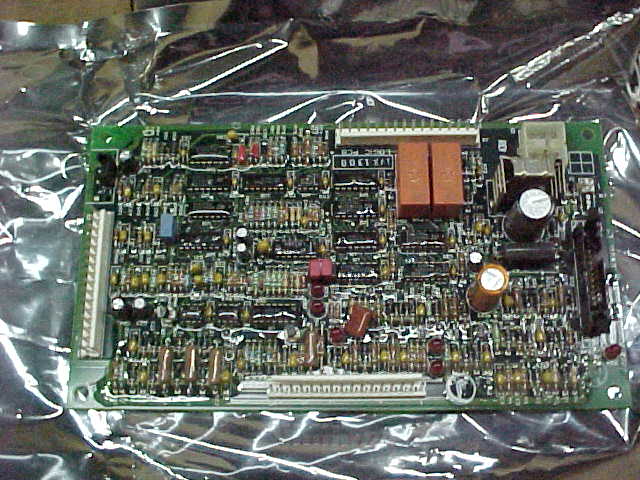

The Thermal Dynamics 114X203 is the logic‑control PCB that interfaces with the PakMaster 100XL plasma cutter’s PLC and machine controls. Common failure points on this board include degraded power‑rail traces or blown regulators, burnt or cracked surface‑mount components (especially near the LED status indicators), and worn male connector pins that lose contact with the cutter’s harness. Initial diagnostics should verify the 24 V DC input voltage and check for proper ground continuity; inspect the board visually for burn marks, cracked pads, or loose connectors; and review any error codes displayed on the cutter’s panel to correlate with known fault patterns such as “E‑01” (power supply failure) or “E‑02” (communication loss).[oss-gpt-20b]
