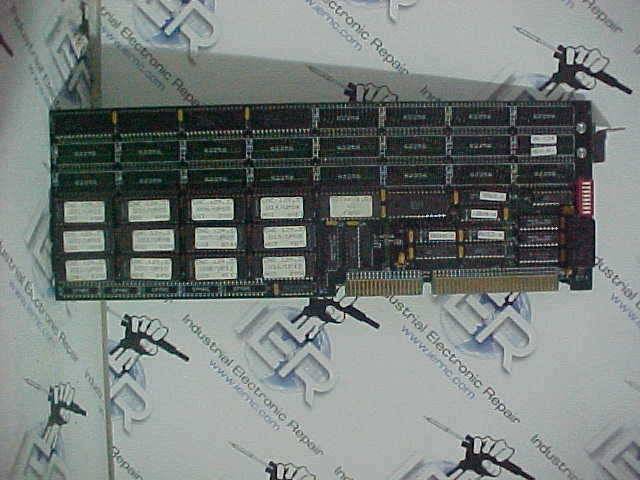

The Milltronics SimDisk ISA Computer card is a full‑length board that emulates a floppy drive by using onboard RAM and ROM chips to intercept the CMOS boot sequence and remap drive letters. Known failure modes include a dead or partially dead internal “floppy” (often due to aging capacitors), incompatibility with CF card IDE adapters, and intermittent operation when connected to non‑standard hard drives or DOS installers. Common repair points are the twelve 27C256 ROM chips, the memory array, and the power supply circuitry that feeds the board’s logic. First‑check diagnostics: verify 5 V/12 V rail stability with a multimeter, visually inspect for burn marks or swollen capacitors on the board, and run a simple boot test using a known good disk image to confirm ROM integrity.[oss-gpt-20b]
