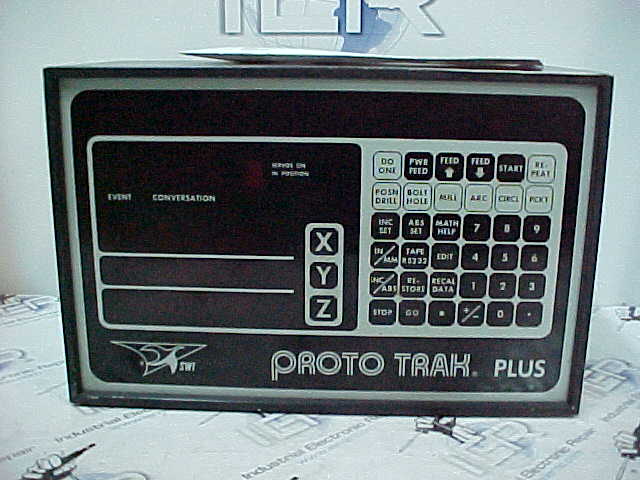

ProtoTrak Plus 15690 DRO Repair Service

Professional diagnostic and board-level repair service for this ProtoTrak ProtoTrak Plus 15690 DRO.

ProtoTrak Plus 15690 is a three‑axis digital readout (DRO) controller with jog and power feed capabilities used on CNC machines. Common failure points for this unit include the main PCB’s power supply board, the stepper motor driver outputs, and the serial communication interface to the host computer. Check that the unit receives proper 24 VDC from its power supply, verify all I/O connectors for continuity and correct pin‑out, and review any error codes displayed on the DRO screen or logged by the host software. If no fault codes appear, perform a visual inspection of the PCB for burnt components or loose solder joints before proceeding to component replacement. Post Comment

Need your ProtoTrak ProtoTrak Plus 15690 DRO repaired?

Ship your unit to our North Carolina repair shop for component-level diagnostics and a repair estimate. We service industrial control electronics and power systems nationwide.

• ⚙️ Board-level diagnostics – Troubleshooting beyond simple module replacement
• 🔁 Clear approval process – No repair begins without your approval
• 🧰 Expert Technicians – Decades of board-level experience
• ✅ 1-Year Warranty – Included with completed repairs

Start a Repair Request   Call 1-336-969-0110

Nationwide service • Industrial-grade testing • 1-year warranty on completed repairs

Owner-Operated • Practical Pricing • 1-Year Warranty • Nationwide Service
