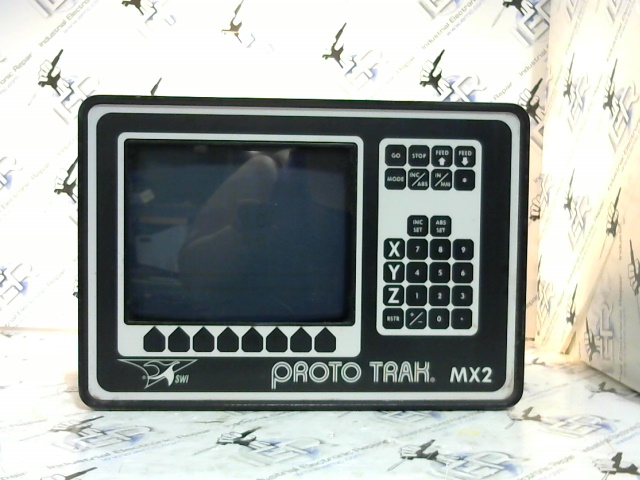

Prototrak MX2 15814R DRO Repair Service

Professional diagnostic and board-level repair service for this Prototrak MX2 15814R DRO.

The ProtoTRAK MX2 15814R is a terminal CNC controller that integrates a digital readout (DRO), jog, and simple machine‑tool functions. Common failures on this model include LCD backlight or display degradation, power‑supply ripple causing erratic DRO readings, and intermittent I/O faults in the servo drive interface. For initial troubleshooting, verify 24 V DC supply voltage and check for proper ground continuity; inspect the LCD panel for loose connections or burnt capacitors; and review any error codes displayed on the console or logged by the controller’s diagnostic routine. Post Comment

Need your Prototrak MX2 15814R DRO repaired?

Ship your unit to our North Carolina repair shop for component-level diagnostics and a repair estimate. We service industrial control electronics and power systems nationwide.

• ⚙️ Board-level diagnostics – Troubleshooting beyond simple module replacement
• 🔁 Clear approval process – No repair begins without your approval
• 🧰 Expert Technicians – Decades of board-level experience
• ✅ 1-Year Warranty – Included with completed repairs

Start a Repair Request   Call 1-336-969-0110

Nationwide service • Industrial-grade testing • 1-year warranty on completed repairs

Owner-Operated • Practical Pricing • 1-Year Warranty • Nationwide Service
