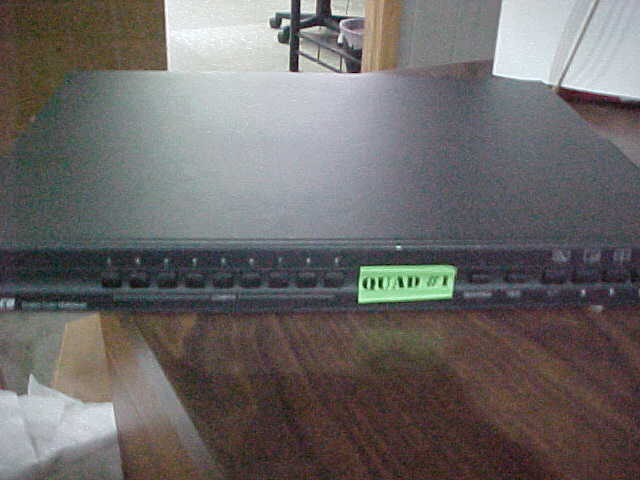

The Pelco MX4009CD is a 9‑channel duplex color video multiplexer designed for NTSC/PAL CCTV systems, accepting 120 VAC input and providing multiple output formats (Quad, PIP, 9‑channel). Common failures include power supply dropout or voltage sag, degraded channel switching due to capacitor aging on the internal logic board, and connector corrosion causing intermittent camera links; the unit may also exhibit slow format change when toggling between color and monochrome inputs. First‑check diagnostics: verify 120 VAC input voltage and continuity to the main board, inspect all cable connectors for signs of wear or corrosion, and review any error codes displayed on the front panel (e.g., “CHx OFF” or “FORMAT ERR”).[oss-gpt-20b]
