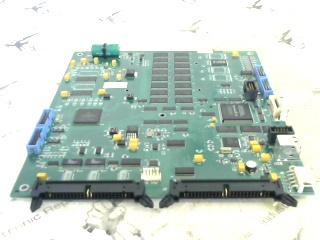

Haas SM46063104 Circuit Board
 |
The Haas SM46063104 is a power‑distribution PCB that monitors the 115 VAC output of the main transformer (TB 94/95) and generates a proportional 0–5 VDC reference for the NGC controller. Common failures include degraded transformer windings, damaged voltage‑sense resistors or op‑amp failure causing erratic line‑voltage gauge readings; overheating can also burn out the reference regulator IC. First‑check steps: verify the input AC voltage and transformer secondary output with a multimeter, inspect the reference voltage rail for correct 0–5 VDC under load, and examine the board for visible scorch marks or cracked solder joints on the sense network.[oss-gpt-20b] |
Need your Haas repaired or tested?
We specialize in the repair and refurbishment of high-end industrial control electronics and power systems like this unit.
- ⚙️ Fast Diagnostics – Same-day evaluation available
- 🔁 Reliable Turnaround – Most jobs ship within 5–10 business days
- 🧰 Expert Technicians – Decades of board-level experience
- ✅ 1-Year Warranty – Every repair fully guaranteed
📞 Call Now: 1 (336) 969-0110
Free Estimates • Industrial-grade testing • Nationwide Service
