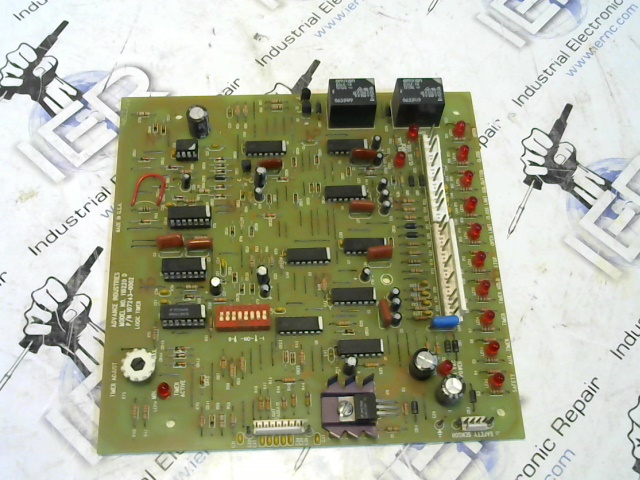

Advance Industries 116220D 107243-0002 Gate Timer Board

The Advance Industries 116220D 107243‑0002 is a logic timer board used in industrial PLC and machine‑control applications to provide timed sequencing and interlock functions. Common failures on this class of boards include burnt or tripped protection diodes, degraded surface‑mount ICs due to thermal cycling, and loose solder joints on the power input pins. First‑check diagnostics: verify 24 V DC input voltage and polarity; inspect for visible burn marks or cracked components on the board; test I/O outputs with a multimeter or oscilloscope for correct timing pulses and check any associated error codes in the host PLC.[oss-gpt-20b] Post Comment
