Icon 132022 Board

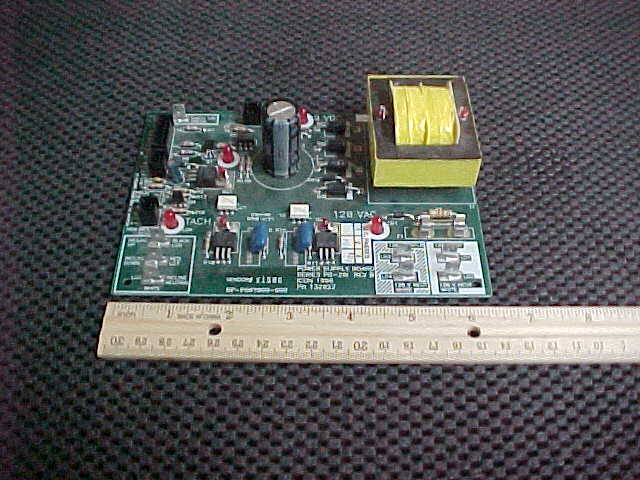

The Icon 132022 is the PB‑201 power‑supply board used in Icon and Image brand treadmills such as the Health & Fitness Pro‑Form models. Common failure modes include electrolytic capacitor degradation on the high‑voltage rail, malfunctioning voltage regulators that cause brown‑outs or over‑voltage spikes, and burnt traces from overheating due to inadequate heat sinking. First‑check diagnostics: verify 120 V AC input and correct transformer output; inspect for bulging or leaking capacitors and check regulator IC temperatures; review any error codes on the treadmill’s diagnostic display for power‑supply faults.[oss-gpt-20b]

Need your Icon repaired or tested?

We specialize in the repair and refurbishment of high-end industrial control electronics and power systems like this unit.

⚙️ Fast Diagnostics – Same-day evaluation available
🔁 Reliable Turnaround – Most jobs ship within 5–10 business days
🧰 Expert Technicians – Decades of board-level experience
✅ 1-Year Warranty – Every repair fully guaranteed

📞 Call Now: 1 (336) 969-0110

Free Estimates • Industrial-grade testing • Nationwide Service
