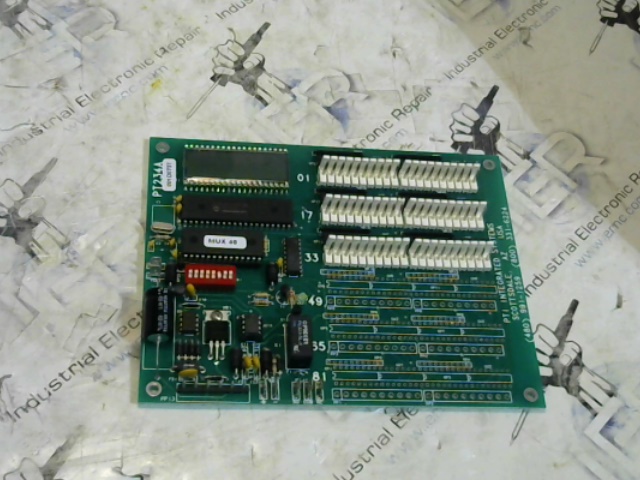

PTI Access Controls PT 234A Circuit Board
 |
PTI Access Controls PT 234A MUX Board is a 16‑channel monitored‑line interface adaptor used to multiplex door alarm and sensor signals into a PTI access control system. Common failures include burned or tripped diodes on the line input/output traces, damaged relay contacts that lose the open/closed state indication, and corrosion or loose solder joints at the terminal block pins; power supply voltage excursions above 18 V can also damage the board’s ICs. Begin diagnostics by verifying the 12–18 V DC/AC supply to the board, inspecting the terminal block for proper polarity and secure connections, and checking each channel with a multimeter for continuity and correct EOL resistor values; finally review any error codes or status LEDs on the host controller that reference the MUX.[oss-gpt-20b] |
Need your PTI Access Controls repaired or tested?
We specialize in the repair and refurbishment of high-end industrial control electronics and power systems like this unit.
- ⚙️ Fast Diagnostics – Same-day evaluation available
- 🔁 Reliable Turnaround – Most jobs ship within 5–10 business days
- 🧰 Expert Technicians – Decades of board-level experience
- ✅ 1-Year Warranty – Every repair fully guaranteed
📞 Call Now: 1 (336) 969-0110
Free Estimates • Industrial-grade testing • Nationwide Service
