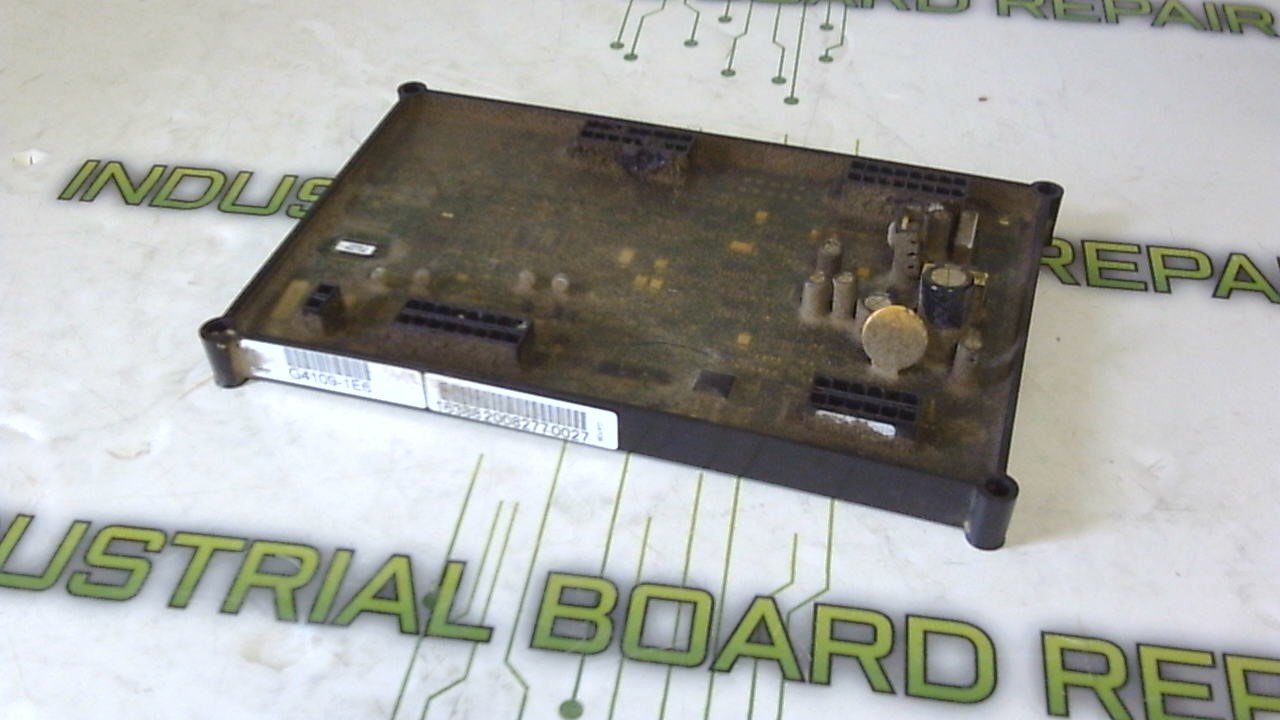

Lincoln G4109-1E6 Controller
 |
The Lincoln G4109‑1E6 is an analog weld‑control PC board used in industrial welding rigs to regulate arc voltage and current through its operator interface. Common failure points on this class of boards include burnt or cracked capacitors, failed MOSFETs/IGBTs that drive the power stage, and degraded solder joints around the high‑current traces; these often manifest as erratic weld control or complete loss of function. First‑check diagnostics: verify 24 V DC input to the board and confirm proper grounding; inspect for visible signs of component damage (burn marks, bulging caps); and review any error codes displayed on the operator panel or communicated via the PLC interface.[oss-gpt-20b] |
Need your Lincoln repaired or tested?
We specialize in the repair and refurbishment of high-end industrial control electronics and power systems like this unit.
- ⚙️ Fast Diagnostics – Same-day evaluation available
- 🔁 Reliable Turnaround – Most jobs ship within 5–10 business days
- 🧰 Expert Technicians – Decades of board-level experience
- ✅ 1-Year Warranty – Every repair fully guaranteed
📞 Call Now: 1 (336) 969-0110
Free Estimates • Industrial-grade testing • Nationwide Service
