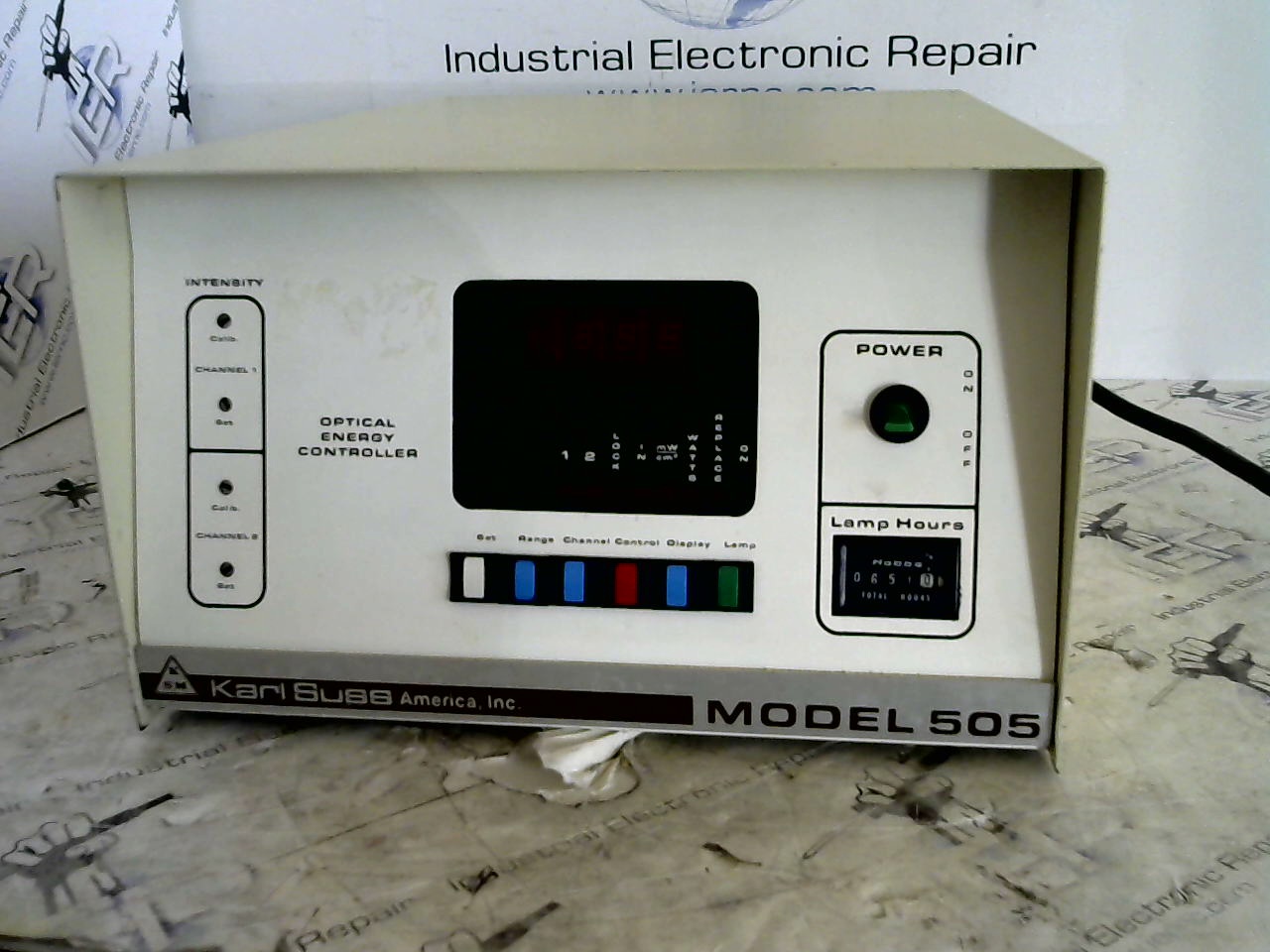

Karl Suss America 505 Power Supply Repair Service

Professional diagnostic and board-level repair service for this Karl Suss America 505 Power Supply.

The Karl Suss America 505 Power Supply is an industrial-grade DC supply used to power optical energy controllers and mask aligners in semiconductor processing equipment. Common failure points for this class of supplies include degraded output capacitors, failing switching MOSFETs or rectifier diodes, and overheating due to inadequate heat sinking; symptoms often appear as unstable voltage regulation, audible noise, or thermal shutdown. First‑check steps: verify input mains voltage and polarity, measure the regulated output with a multimeter while the unit is powered on, and inspect for visible signs of component failure such as bulging capacitors or burnt traces before proceeding to internal diagnostics. Post Comment

Need your Karl Suss America 505 Power Supply repaired?

Ship your unit to our North Carolina repair shop for component-level diagnostics and a repair estimate. We service industrial control electronics and power systems nationwide.

• ⚙️ Board-level diagnostics – Troubleshooting beyond simple module replacement
• 🔁 Clear approval process – No repair begins without your approval
• 🧰 Expert Technicians – Decades of board-level experience
• ✅ 1-Year Warranty – Included with completed repairs

Start a Repair Request   Call 1-336-969-0110

Nationwide service • Industrial-grade testing • 1-year warranty on completed repairs

Owner-Operated • Practical Pricing • 1-Year Warranty • Nationwide Service
