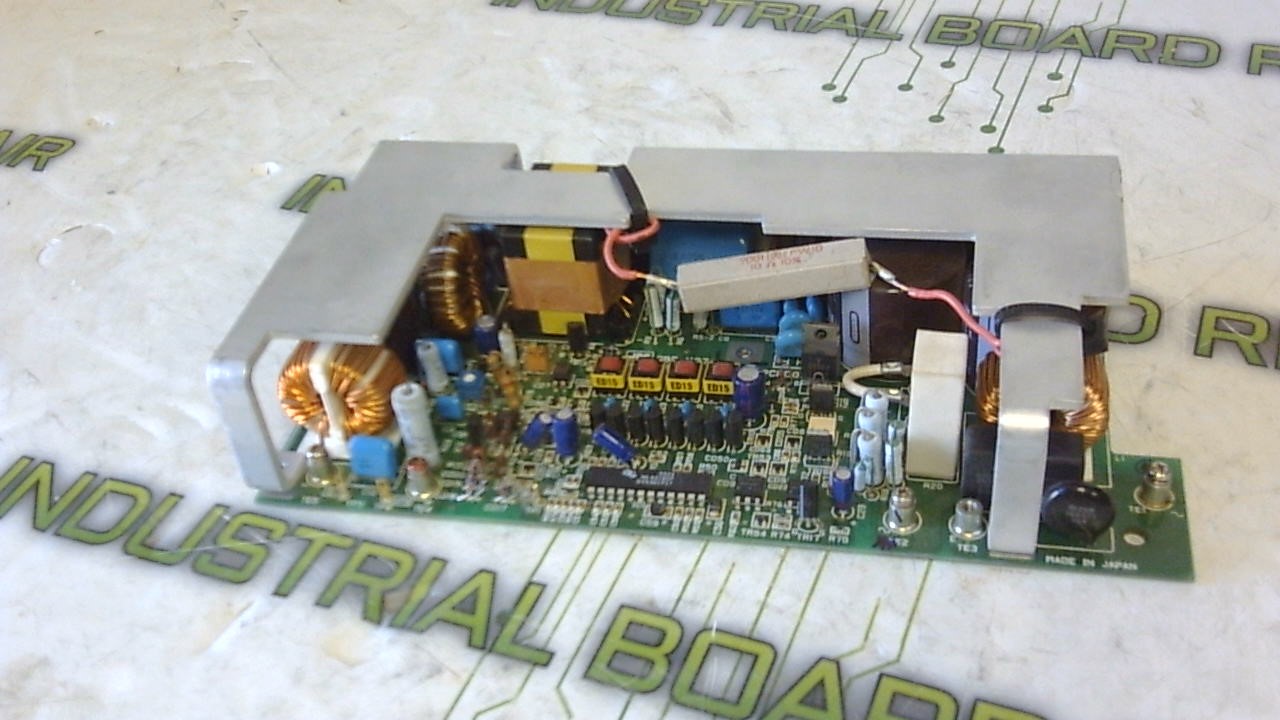

JRC CBD-1197 Circuit Board Repair Service

Professional diagnostic and board-level repair service for this JRC CBD-1197 Circuit Board.

The JRC CBD‑1197 is a compact industrial AC‑to‑DC power supply module commonly used in control panels and monitoring equipment. Typical failures include transformer winding insulation breakdown, capacitor electrolyte leakage, or failure of the switching regulator IC, often manifesting as no output voltage or overheating. Begin by verifying input mains voltage and polarity, then measure the DC output under load; inspect for visible signs of component damage such as bulging capacitors or burnt traces. If output is present but erratic, check the regulator’s control loop and replace any suspect MOSFETs or protection diodes before proceeding to re‑soldering or board refurbishment. Post Comment

Need your JRC CBD-1197 Circuit Board repaired?

Ship your unit to our North Carolina repair shop for component-level diagnostics and a repair estimate. We service industrial control electronics and power systems nationwide.

• ⚙️ Board-level diagnostics – Troubleshooting beyond simple module replacement
• 🔁 Clear approval process – No repair begins without your approval
• 🧰 Expert Technicians – Decades of board-level experience
• ✅ 1-Year Warranty – Included with completed repairs

Start a Repair Request   Call 1-336-969-0110

Nationwide service • Industrial-grade testing • 1-year warranty on completed repairs

Owner-Operated • Practical Pricing • 1-Year Warranty • Nationwide Service
