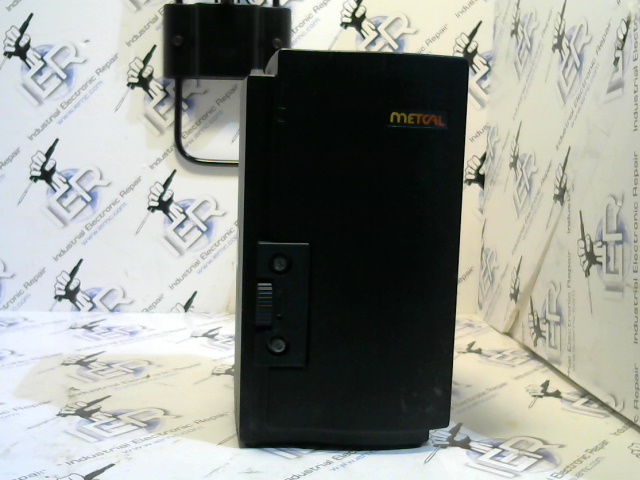

Metcal MX-500P-11 Rework System Repair Service

Professional diagnostic and board-level repair service for this Metcal MX-500P-11 Rework System.

The Metcal MX‑500P‑11 is a dual‑port soldering and rework station that delivers 13.56 MHz RF energy to an induction heater in the tip cartridge; the cartridge contains an 18‑turn AWG33 coil wound around a copper core clad with a magnetic alloy set to its Curie point for temperature control. Common failure modes include loss of RF output (often due to a damaged coil or faulty power supply), overheating or premature wear of the tip cartridge, and control board errors that trigger error codes such as “RF‑FAIL” or “TIP‑TEMP”. First‑check diagnostics: verify 100/120 V input voltage and correct polarity; measure the DC output from the power unit to ensure it matches spec; inspect the tip cartridge for coil damage or corrosion; review any displayed error codes on the front panel. Post Comment

Need your Metcal MX-500P-11 Rework System repaired?

Ship your unit to our North Carolina repair shop for component-level diagnostics and a repair estimate. We service industrial control electronics and power systems nationwide.

• ⚙️ Board-level diagnostics – Troubleshooting beyond simple module replacement
• 🔁 Clear approval process – No repair begins without your approval
• 🧰 Expert Technicians – Decades of board-level experience
• ✅ 1-Year Warranty – Included with completed repairs

Start a Repair Request   Call 1-336-969-0110

Nationwide service • Industrial-grade testing • 1-year warranty on completed repairs

Owner-Operated • Practical Pricing • 1-Year Warranty • Nationwide Service
