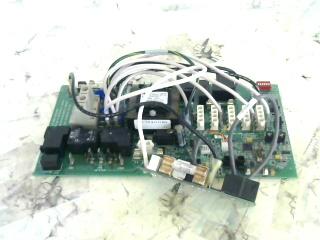

Balboa BP501G2R1A 24090_B1 Circuit Board Repair Service

Professional diagnostic and board-level repair service for this Balboa BP501G2R1A 24090_B1 Circuit Board.

The Balboa BP501G2R1A 24090_B1 is a multi‑layer control board used in spa and hot‑tub systems to drive pumps, blowers, circulation units and LED lighting through solid‑state relays. Common failure points include burnt or tripped relays, damaged power traces from voltage spikes, and corrosion on connector pins due to humidity. First‑check the 12 V supply rail for correct voltage, inspect all relay contacts for signs of arcing or oxidation, and verify that all dip switches/jumpers are set per the spa’s configuration before proceeding with further diagnostics. Post Comment

Need your Balboa BP501G2R1A 24090_B1 Circuit Board repaired?

Ship your unit to our North Carolina repair shop for component-level diagnostics and a repair estimate. We service industrial control electronics and power systems nationwide.

• ⚙️ Board-level diagnostics – Troubleshooting beyond simple module replacement
• 🔁 Clear approval process – No repair begins without your approval
• 🧰 Expert Technicians – Decades of board-level experience
• ✅ 1-Year Warranty – Included with completed repairs

Start a Repair Request   Call 1-336-969-0110

Nationwide service • Industrial-grade testing • 1-year warranty on completed repairs
