KYOSAN HPK 06ZI-RT1 Power Supply Repair Service

Professional diagnostic and board-level repair service for this KYOSAN HPK 06ZI-RT1 Power Supply.

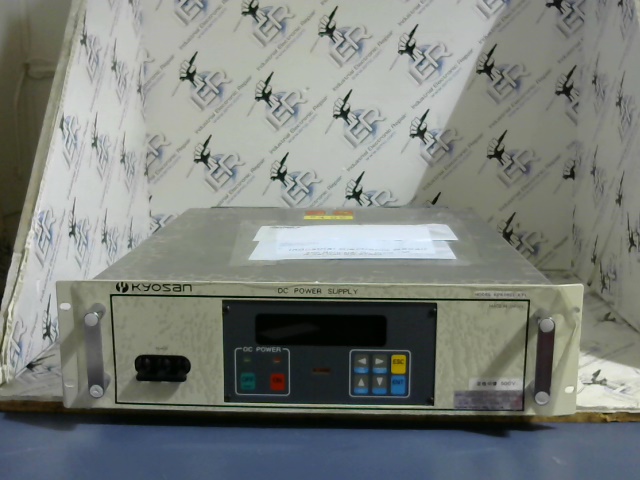

KYOSAN HPK 06ZI-RT1 Power Supply industrial electronic unit

KYOSAN HPK 06ZI‑RT1 is a high‑voltage DC power supply (≈1000 V, 20 A) commonly used to drive semiconductor fabrication tools, flat‑panel display assembly lines and arcless sputtering systems. Typical failure modes for this class of equipment include capacitor degradation on the rectifier/filter stages, overheating of the internal switching regulator or transformer winding insulation breakdown, and loss of output voltage due to blown fuses or damaged MOSFETs. Begin troubleshooting by verifying input AC supply continuity and correct phase sequence, measuring the DC output under no‑load and load conditions for voltage stability, then inspecting the rectifier bridge, filter capacitors, and heat sink for signs of wear or overheating. If the output is unstable, check the control logic and any associated I/O signals for proper operation.

Need your KYOSAN HPK 06ZI-RT1 Power Supply repaired?

Ship your unit to our North Carolina repair shop for component-level diagnostics and a repair estimate. We service industrial control electronics and power systems nationwide.

⚙️ Board-level diagnostics – Troubleshooting beyond simple module replacement
🔁 Clear approval process – No repair begins without your approval
🧰 Expert Technicians – Decades of board-level experience
✅ 1-Year Warranty – Included with completed repairs

Start a Repair Request Call 1-336-969-0110

Nationwide service • Industrial-grade testing • 1-year warranty on completed repairs
