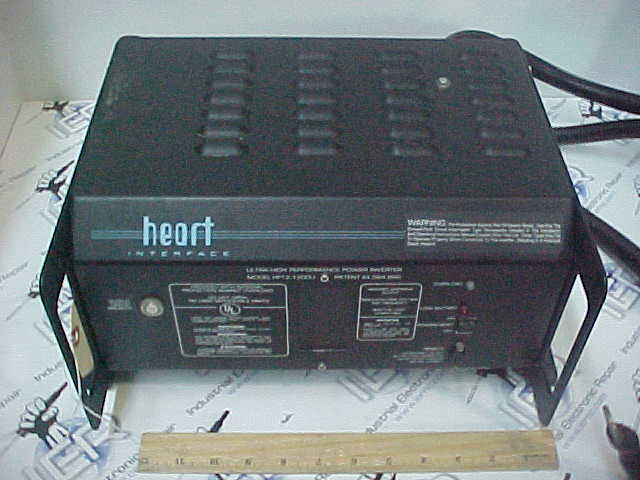

Heart HF12-1200U Power Supply Repair Service

Professional diagnostic and board-level repair service for this Heart HF12-1200U Power Supply.

Heart HF12‑1200U is a 12 V DC‑to‑AC power inverter rated at 1.2 kW with surge capability up to 3.5 kW, commonly used in RV and industrial motor control applications. Common failure modes for this class include damaged input capacitors or rectifier diodes, overheating of the MOSFET array, burnt gate drivers, and failure of the DC‑to‑AC transformer windings due to over‑current or reverse polarity. Initial checks should verify that the 12 V supply is within spec (±5 % tolerance), inspect the input side for cracked or swollen electrolytic capacitors, test the MOSFETs for continuity and gate drive voltage, and confirm the output AC waveform with a multimeter/oscilloscope to rule out phase imbalance or distortion. Post Comment

Need your Heart HF12-1200U Power Supply repaired?

Ship your unit to our North Carolina repair shop for component-level diagnostics and a repair estimate. We service industrial control electronics and power systems nationwide.

• ⚙️ Board-level diagnostics – Troubleshooting beyond simple module replacement
• 🔁 Clear approval process – No repair begins without your approval
• 🧰 Expert Technicians – Decades of board-level experience
• ✅ 1-Year Warranty – Included with completed repairs

Start a Repair Request   Call 1-336-969-0110

Nationwide service • Industrial-grade testing • 1-year warranty on completed repairs

Owner-Operated • Practical Pricing • 1-Year Warranty • Nationwide Service

Other Repaired Units by Heart
