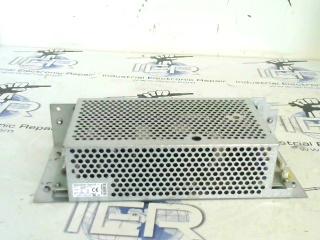

Densei-Lambda ZWD225PAF-0524/JA Power Supply Repair Service

The Densei‑Lambda ZWD225PAF‑0524/JA is a dual‑output AC‑DC converter delivering 5 V @ 5 A and 24 V @ 9 A with an input range of 85–265 VAC, commonly used to power industrial controllers or servo drive logic boards. Common failure points for this class include overheating of the internal switching MOSFETs, degradation of the output capacitors under high ripple currents, and insulation breakdown in the transformer windings when subjected to transient voltage spikes. Initial checks should verify that the input supply is within spec and that the unit’s temperature remains below 70 °C during operation; inspect for visible burn marks or swollen electrolytics on both outputs, and confirm that the output voltages are stable under load using a calibrated multimeter. If anomalies persist, review any diagnostic LEDs or fault codes provided by the host controller before proceeding to component‑level testing.
