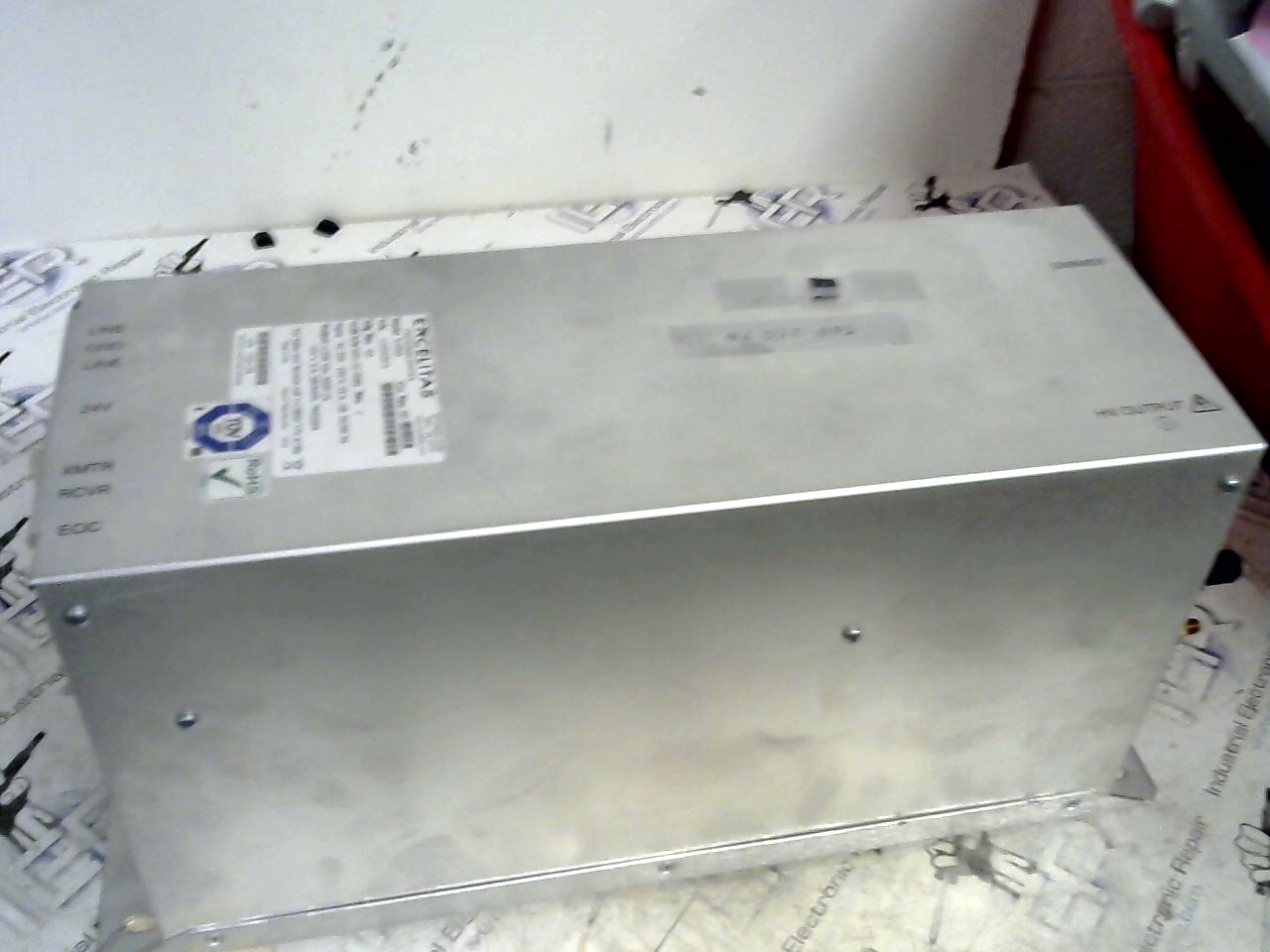

EXCELITAS TLX302 Power Supply Repair Service

Professional diagnostic and board-level repair service for this EXCELITAS TLX302 Power Supply.

The EXCELITAS TLX302 is a high‑voltage power supply module used in Candela laser systems, providing +2000 Vdc output and a +24 V/6 A auxiliary rail from 200–240 VAC input. Common failure modes include capacitor degradation on the HV output stage, tripped or failed MOSFETs in the switching regulator, and insulation breakdown between the high‑voltage and low‑voltage sections. First‑check diagnostics: verify incoming AC voltage and polarity; test the output rails with a multimeter while the unit is powered off to confirm no residual charge; inspect for bulging capacitors or burn marks on the HV board; and review any diagnostic LEDs or error codes displayed by the laser controller. Post Comment

Need your EXCELITAS TLX302 Power Supply repaired?

Ship your unit to our North Carolina repair shop for component-level diagnostics and a repair estimate. We service industrial control electronics and power systems nationwide.

• ⚙️ Board-level diagnostics – Troubleshooting beyond simple module replacement
• 🔁 Clear approval process – No repair begins without your approval
• 🧰 Expert Technicians – Decades of board-level experience
• ✅ 1-Year Warranty – Included with completed repairs

Start a Repair Request   Call 1-336-969-0110

Nationwide service • Industrial-grade testing • 1-year warranty on completed repairs

Owner-Operated • Practical Pricing • 1-Year Warranty • Nationwide Service
