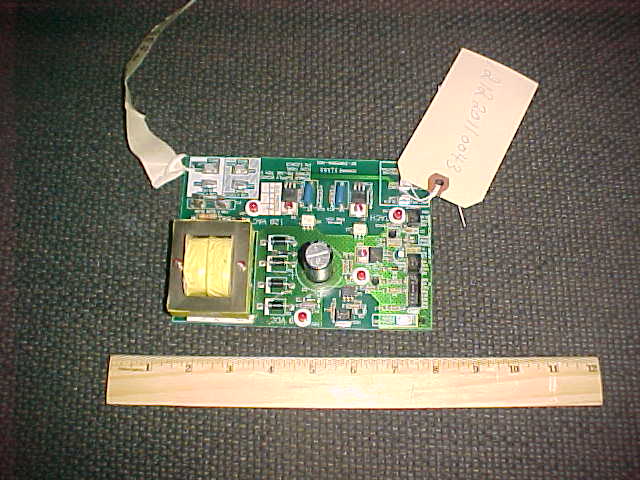

Power Supply Board PB-201 Power Supply Repair Service

Professional diagnostic and board-level repair service for this Power Supply Board PB-201 Power Supply.

The PB‑201 Power Supply Board is a dedicated power module for Icon Pro‑Form treadmills, providing regulated voltage to the motor drive, console electronics and auxiliary circuits. Common failure modes on this board include burned or cracked capacitors, damaged MOSFETs/IGBTs that regulate motor current, and shorted regulator ICs that cause over‑current shutdowns; visual inspection often reveals scorch marks or bulging electrolytics. First‑check diagnostics: verify input voltage at the mains connector, confirm regulated outputs (e.g., 12 V for console, 48 V for motor) with a multimeter, inspect all surface‑mount components for physical damage, and review any error codes displayed on the treadmill console that may point to power supply faults. Post Comment

Need your Power Supply Board PB-201 Power Supply repaired?

Ship your unit to our North Carolina repair shop for component-level diagnostics and a repair estimate. We service industrial control electronics and power systems nationwide.

• ⚙️ Board-level diagnostics – Troubleshooting beyond simple module replacement
• 🔁 Clear approval process – No repair begins without your approval
• 🧰 Expert Technicians – Decades of board-level experience
• ✅ 1-Year Warranty – Included with completed repairs

Start a Repair Request   Call 1-336-969-0110

Nationwide service • Industrial-grade testing • 1-year warranty on completed repairs
