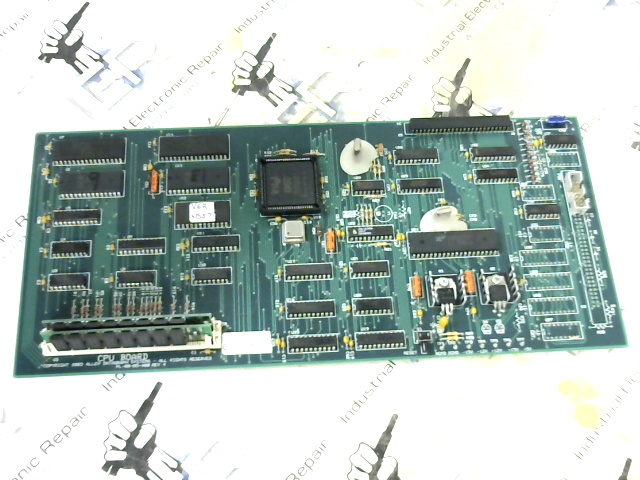

Allen Datagraph System PL-00-05-400 Rev 4 CPU Board Repair Service

Professional diagnostic and board-level repair service for this Allen Datagraph System PL-00-05-400 Rev 4 CPU Board.

The Allen Datagraph System PL‑00‑05‑400 Rev 4 is the main CPU board for the company’s industrial control units, typically used in sign‑making and label‑production equipment to coordinate motor drives, I/O modules, and data acquisition. Common failure points on this board include power‑regulation ICs (especially under‑voltage lockout), damaged surface‑mount components from vibration or thermal cycling, and broken trace connections between the CPU core and peripheral interfaces. Firmware corruption can also trigger boot failures or erratic I/O behavior. First‑check diagnostics: verify that the 24 V/5 V power rails are within spec with a multimeter; inspect the board for burn marks, cracked solder joints, or loose connectors; and review any error codes displayed on the host system’s diagnostic panel to pinpoint CPU, communication, or I/O faults. Post Comment

Need your Allen Datagraph System PL-00-05-400 Rev 4 CPU Board repaired?

Ship your unit to our North Carolina repair shop for component-level diagnostics and a repair estimate. We service industrial control electronics and power systems nationwide.

• ⚙️ Board-level diagnostics – Troubleshooting beyond simple module replacement
• 🔁 Clear approval process – No repair begins without your approval
• 🧰 Expert Technicians – Decades of board-level experience
• ✅ 1-Year Warranty – Included with completed repairs

Start a Repair Request   Call 1-336-969-0110

Nationwide service • Industrial-grade testing • 1-year warranty on completed repairs

Owner-Operated • Practical Pricing • 1-Year Warranty • Nationwide Service
