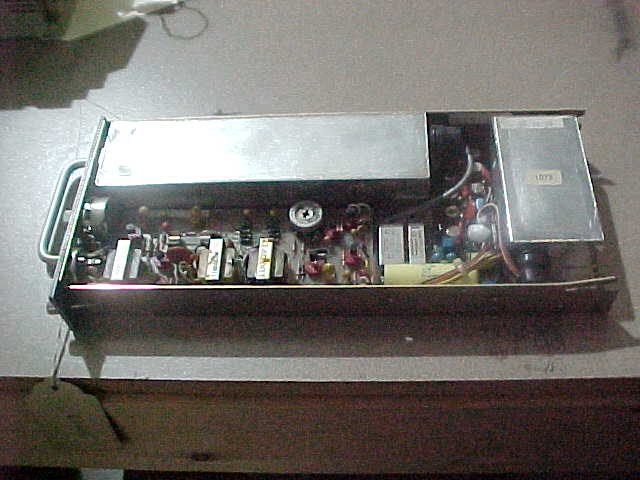

The Quindar QPDI30 is a tone‑receiver module used in industrial control loops to detect 1175 Hz (or similar) carrier tones and convert them into digital signals for PLCs or DCSs. Common failure modes include loss of input sensitivity due to damaged RF front‑end components, failure of the internal demodulation IC (often an integrated tone‑detection chip), or broken solder joints on the power/ground pads that cause intermittent operation. For this class of receivers, typical repair points are the power supply filtering capacitors, the tone‑detector IC, and the input/output connectors.

First‑check diagnostics: verify 24 VDC (or specified) power to the board with a multimeter; inspect the RF front‑end for cracked or corroded components; check the output logic levels against the datasheet using an oscilloscope or logic probe. If the unit passes these checks, proceed to component‑level testing of the tone‑detector IC and replace any failed parts.[oss-gpt-20b]
