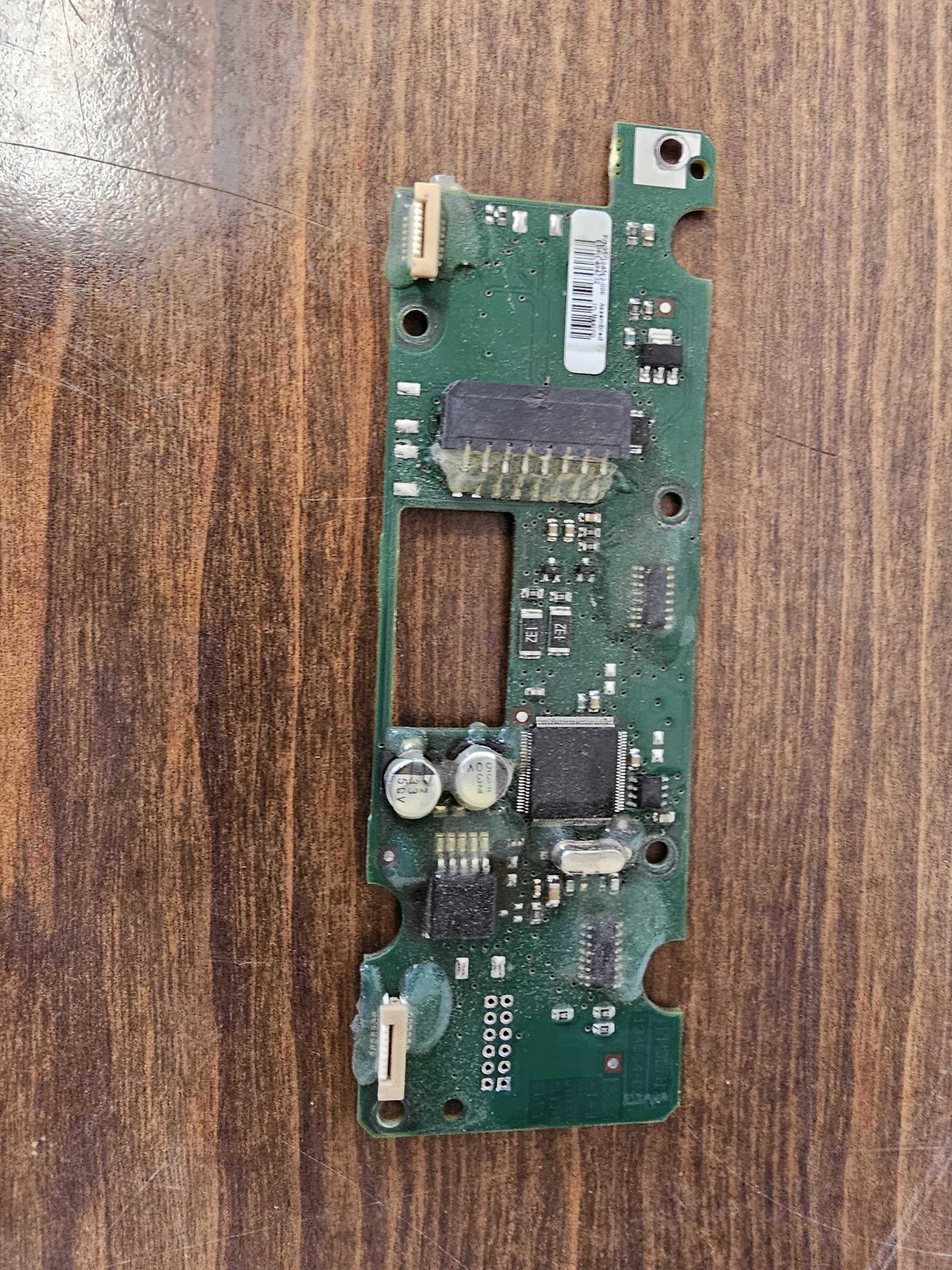

Phoenix 134564-02 Circuit Board

Phoenix 134564‑02 is a compact control circuit board (part #95‑134563‑006) used to manage signal routing and power distribution in industrial automation modules. Common failure points for this class include burned or cracked surface‑mount components, degraded solder joints on the power input section, and capacitor leakage within the voltage regulation network. Begin troubleshooting by verifying that the board receives its rated supply voltage and checking for visible damage such as discoloration or burn marks; then test I/O pins against expected logic levels and inspect the decoupling capacitors for bulging or leakage.[oss-gpt-20b]

Need your Phoenix repaired or tested?

We specialize in the repair and refurbishment of high-end industrial control electronics and power systems like this unit.

⚙️ Fast Diagnostics – Same-day evaluation available
🔁 Reliable Turnaround – Most jobs ship within 5–10 business days
🧰 Expert Technicians – Decades of board-level experience
✅ 1-Year Warranty – Every repair fully guaranteed

📞 Call Now: 1 (336) 969-0110

Free Estimates • Industrial-grade testing • Nationwide Service
