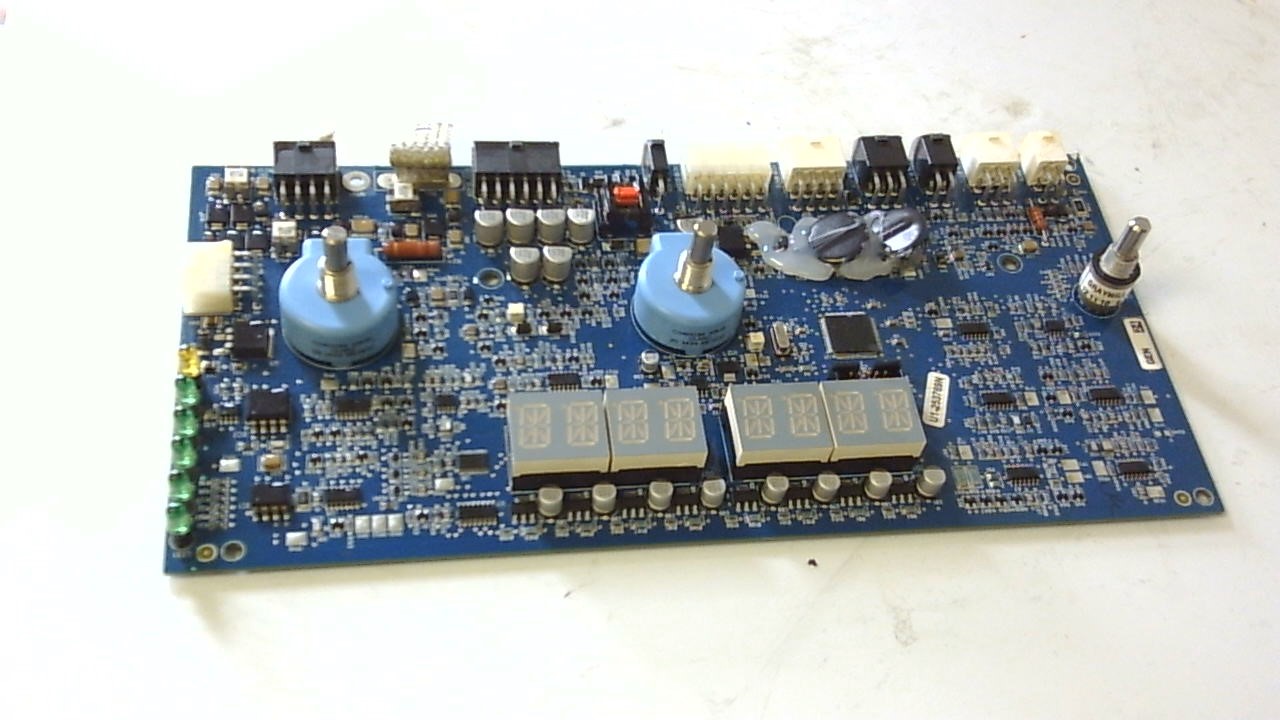

Miller 250303 Circuit Board

The Miller 250303 is the control circuit card assembly for the TrailBlazer 325 welding system, incorporating power‑distribution, status LEDs, and a program table interface. Common failure modes include burned or cracked ICs on the main controller board, damaged trace paths from thermal cycling, and loose solder joints to the program memory chip. For troubleshooting, first verify that the 24 V DC supply is within spec and that all input signals (pulse, ground, reference) are present; next inspect the board for visual signs of overheating or component damage, especially around the microcontroller and power‑regulation sections; finally check the status LEDs and error codes displayed on the TrailBlazer panel to correlate with known fault patterns.[oss-gpt-20b]
