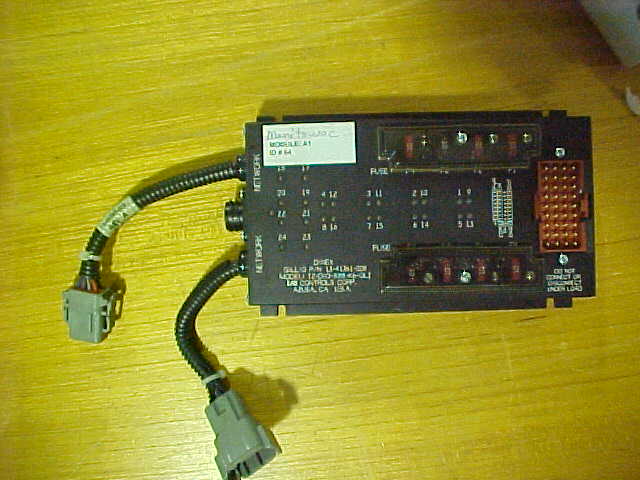

The Dinex G2A‑DIO‑PWM‑888B is a networked I/O control module used in industrial motor drives and automation systems, providing digital input/output and PWM output for servo or stepper drive control. Common failure points on this class of modules include burned or tripped protection diodes on the PWM outputs, degraded MOSFETs due to over‑voltage spikes, and corrosion or loose solder joints on the I/O headers from vibration exposure. Initial troubleshooting should verify that the module receives its rated 24 V DC supply without ripple, check continuity and resistance of the PWM output transistors, and inspect the I/O pins for physical damage or shorts; reviewing any error logs or diagnostic LEDs can quickly indicate a protection trip or communication fault.[oss-gpt-20b]
