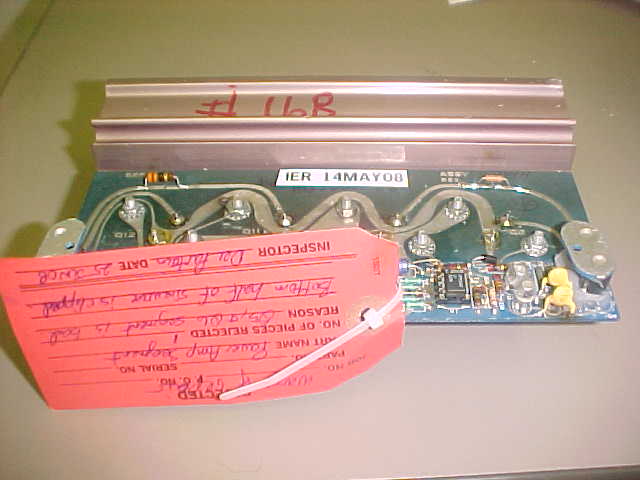

Xynetics Inc. 703804H amplifier

Xynetics Inc. 703804H is a high‑current XY amplifier board used as the power stage in industrial drive or motor control systems. Common failure points include failed electrolytic capacitors on the input filter, over‑temperature degradation of MOSFETs or IGBTs, and blown protection fuses due to surge or short circuits. Begin troubleshooting by verifying the main supply voltage and ripple with an oscilloscope, inspecting for burnt components or discoloration, and checking all fuse ratings against the board’s specifications. If the board still fails after these checks, examine the output current waveform for clipping or distortion that indicates internal driver faults.[oss-gpt-20b] Post Comment
