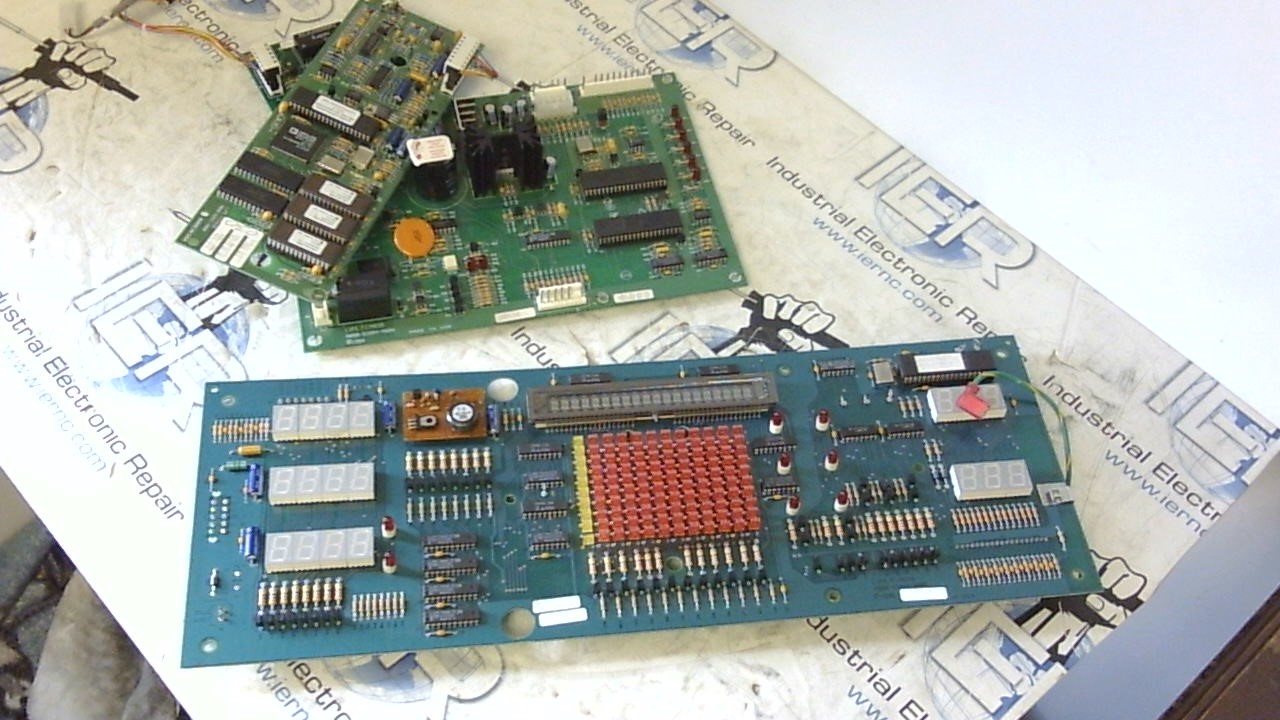

Life Fitness A080-92049-B000 Treadmill Board

The A080‑92049‑B000 is the integrated display/control board used on Life Fitness TR9100 HR treadmills, housing an LCD panel, backlight driver ICs and a microcontroller that drives speed/ incline data to the console. Common failure points include burned‑out backlight LEDs or driver chips, cracked solder joints on the LCD connector, and power‑rail voltage drops caused by aging capacitors or damaged PCB traces. Initial checks should verify the 12 V/5 V supply rails at the board’s connectors, inspect for visible shorts or corrosion on the display interface, and test the LCD brightness and backlight functionality while monitoring the microcontroller’s reset line for erratic behavior.[oss-gpt-20b] Post Comment
