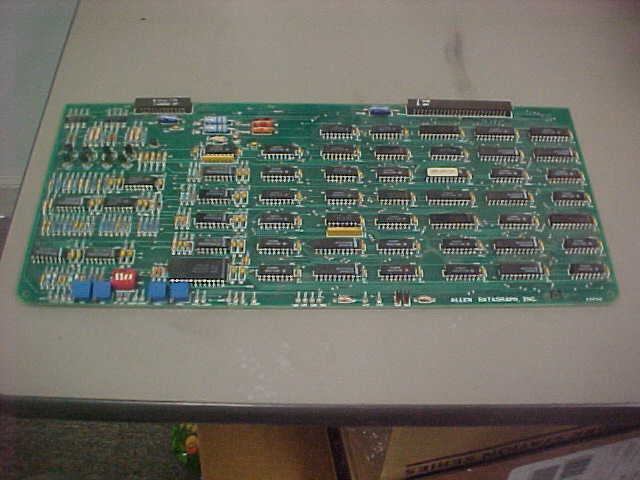

Allen Datagraph Inc. EP-13 94V-0 board

The Allen Datagraph EP‑13 94V‑0 is a control/PLC add‑on board used in industrial automation systems for signal conditioning and logic processing. Common failure points on this class of boards include burnt or cracked power input traces, degraded MOSFETs or IGBT drivers, and capacitive coupling damage to the 5 V rail that can trigger erratic I/O behavior. First‑check diagnostics: verify the 115 V/120 V supply voltage and continuity to the board’s power pins; inspect for visible burn marks or swollen electrolytics on the high‑voltage side; and review any logged error codes from the host PLC for patterns of over‑current or short‑circuit faults.[oss-gpt-20b] Post Comment
