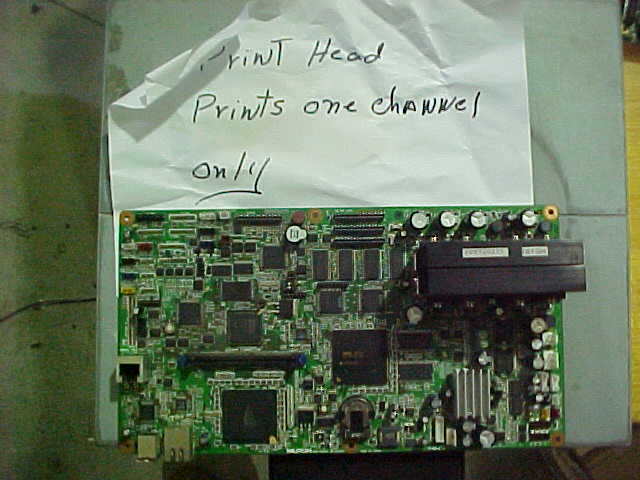

Mutoh Mainboard DE-22224A DE-22224A Printer Mother Board

The Mutoh DE‑22224A is the main control board for VJ series large‑format printers, housing the PLC logic, motor drivers and I/O interfaces that govern print head movement and carriage positioning. Common failure modes on this board include burnt or tripped fuses in the power section, damaged MOSFETs or driver ICs due to overvoltage spikes, and cracked solder joints on the motor driver pads; these often manifest as loss of motion control or intermittent error codes. First‑check steps: verify that the 24 V/48 V supply rails are within spec and that all fuses are intact, inspect the board for visible burn marks or loose components around the motor drivers, and review any printer diagnostic logs for specific fault codes (e.g., “E12” for drive failure).[oss-gpt-20b]
