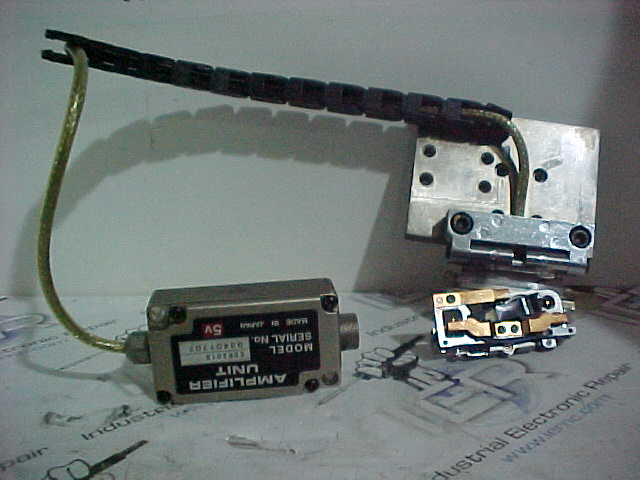

Futaba Pulscale EDR201B ENCODER

Futaba Pulscale EDR201B is a digital rotary encoder used in industrial servo drives and motion control systems. Common failure modes for this class of encoders include loss of signal due to cable or connector corrosion, internal LED driver burnout, magnetic interference causing phase errors, and power supply ripple damaging the logic ICs. First‑check steps: verify 5 V supply voltage and ground continuity; inspect the encoder shaft and contacts for debris or wear; confirm that all four quadrature outputs (A, B, Z) are present and clean on a multimeter or oscilloscope before proceeding to firmware or driver diagnostics.[oss-gpt-20b]

Need your Futaba Pulscale repaired or tested?

We specialize in the repair and refurbishment of high-end industrial control electronics and power systems like this unit.

⚙️ Fast Diagnostics – Same-day evaluation available
🔁 Reliable Turnaround – Most jobs ship within 5–10 business days
🧰 Expert Technicians – Decades of board-level experience
✅ 1-Year Warranty – Every repair fully guaranteed

📞 Call Now: 1 (336) 969-0110

Free Estimates • Industrial-grade testing • Nationwide Service
