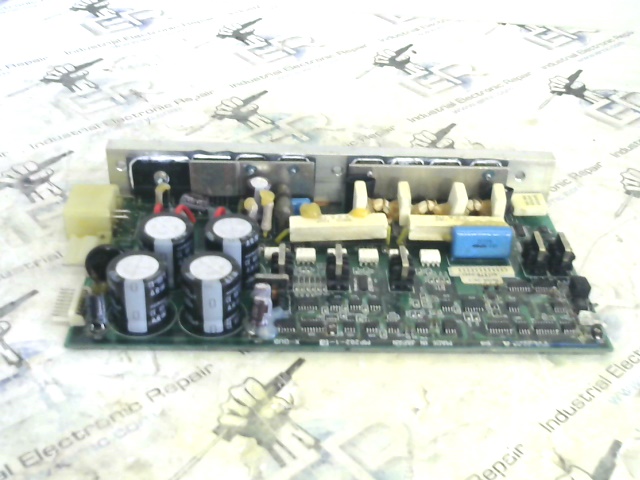

Tajima MP202-1-D Circuit Board

Tajima MP202‑1‑D is an X/Y axis drive card used in embroidery machines, providing motor control and sensor feedback for the XY stages. Common failure modes on this board include burnt or failed MOSFETs/IGBTs due to overcurrent, damaged optocouplers from voltage spikes, and degraded capacitors causing noise on the power rails. For first‑check diagnostics: verify that the 24 V DC supply is within spec and stable; inspect the board for visible burn marks or cracked components, especially around the drive MOSFETs and decoupling caps; and read any error codes from the machine’s control panel to pinpoint a specific axis or motor fault.[oss-gpt-20b]

Need your Tajima repaired or tested?

We specialize in the repair and refurbishment of high-end industrial control electronics and power systems like this unit.

⚙️ Fast Diagnostics – Same-day evaluation available
🔁 Reliable Turnaround – Most jobs ship within 5–10 business days
🧰 Expert Technicians – Decades of board-level experience
✅ 1-Year Warranty – Every repair fully guaranteed

📞 Call Now: 1 (336) 969-0110

Free Estimates • Industrial-grade testing • Nationwide Service
