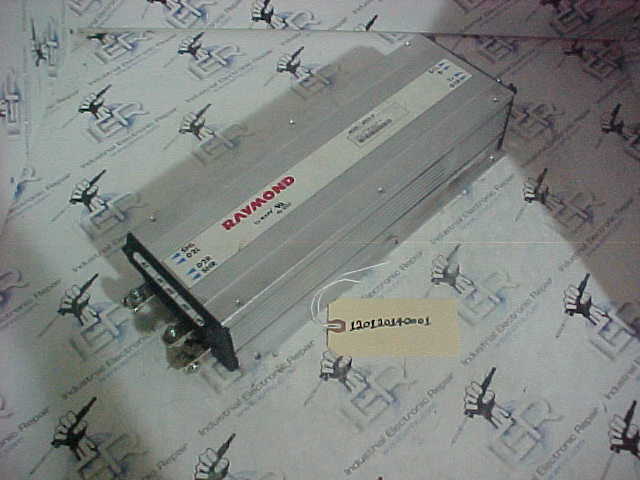

Raymond AU 3503 Power Inverter Repair Service

Professional diagnostic and board-level repair service for this Raymond AU 3503 Power Inverter.

The Raymond AU 3503 is a ZAPI industrial controller used in forklift and material‑handling applications, typically mounted on the vehicle’s control panel and powered by a 48 V DC supply. Common failure points include the main power module (over‑current or thermal shutdown), input/output relay contacts (corrosion or wear), and the internal PCB where solder joints can crack under vibration; firmware corruption is also a frequent issue in older units. First‑check diagnostics: verify that the 48 V supply is present and within spec, inspect all connectors for loose or corroded pins, and review any diagnostic LEDs or error codes displayed on the controller panel before proceeding to PCB inspection. Post Comment

Need your Raymond AU 3503 Power Inverter repaired?

Ship your unit to our North Carolina repair shop for component-level diagnostics and a repair estimate. We service industrial control electronics and power systems nationwide.

• ⚙️ Board-level diagnostics – Troubleshooting beyond simple module replacement
• 🔁 Clear approval process – No repair begins without your approval
• 🧰 Expert Technicians – Decades of board-level experience
• ✅ 1-Year Warranty – Included with completed repairs

Start a Repair Request   Call 1-336-969-0110

Nationwide service • Industrial-grade testing • 1-year warranty on completed repairs
