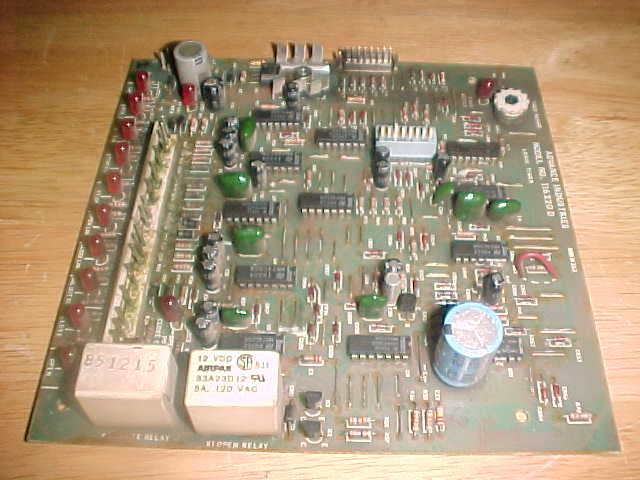

Advance Industries 116220 D 107243-001 logic timer board

The Advance Industries 116220 D is a logic timer board used in industrial PLC and motor control systems to provide timed sequencing and interlock functions. Common failures on this model include burnt or tripped protection diodes, failed MOSFETs on the output drivers, and degraded capacitors on the power supply section; these often manifest as intermittent timing errors or complete loss of function. First‑check diagnostics: verify the input voltage to the board is within spec (typically 24 V DC), inspect for visible signs of component damage or solder bridges, and test the output driver pins with a multimeter or oscilloscope for correct logic levels before proceeding to deeper troubleshooting.[oss-gpt-20b] Post Comment
