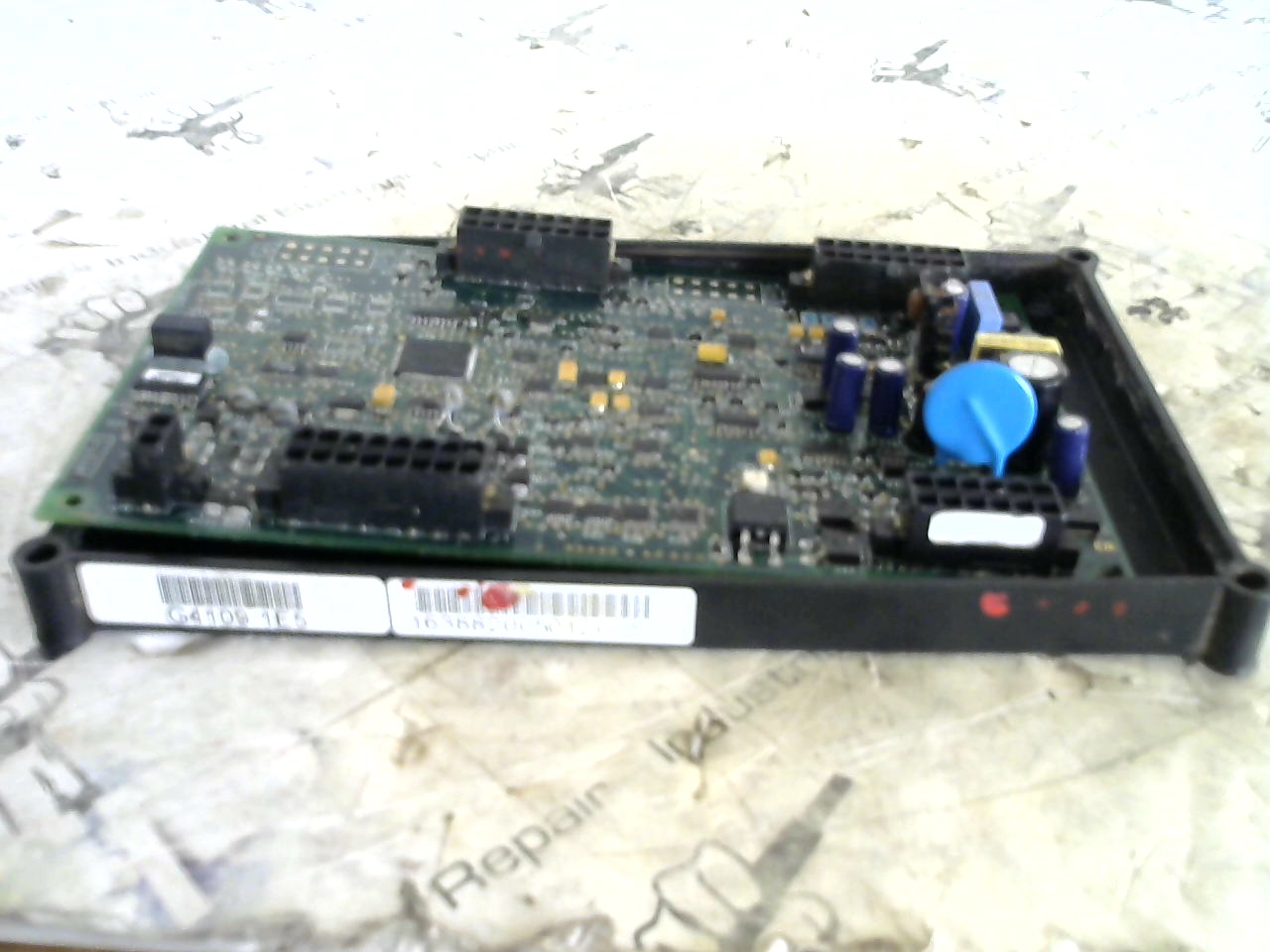

Lincoln G4109-1E5 Circuit Board
 |
The Lincoln G4109‑1E5 is an industrial PLC/add‑on control board used on Lincoln welding and machining systems to provide operator interface and weld‑control logic. Common failure modes for this model include power‑rail sag or over‑voltage leading to component burnouts (especially the main controller ICs), capacitor degradation in the input stage, and firmware corruption that causes erratic I/O behavior. First‑check diagnostics: verify 24 VDC supply continuity and voltage levels at the board’s power pins; inspect for visible signs of overheating or blown components on the PCB; review any error codes or watchdog resets logged by the host controller.[oss-gpt-20b] |
