Lab-Volt 91020-20 magnetism board Repair Service

Professional diagnostic and board-level repair service for this Lab-Volt 91020-20 magnetism board.

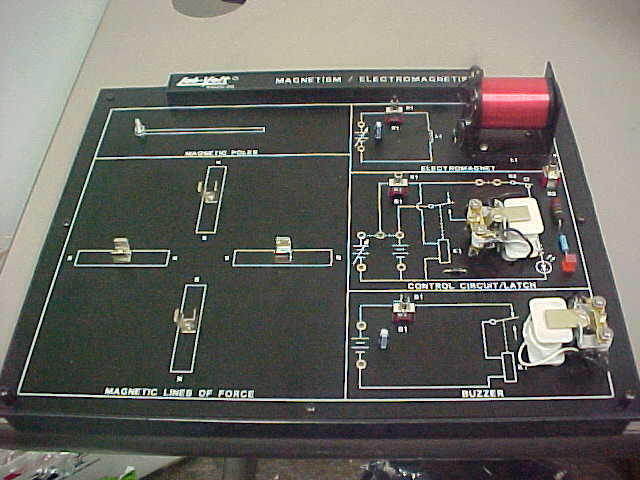

Lab‑Volt 91020‑20 is a magnetism/electromagnetism training board that provides hands‑on experiments with magnetic poles, lines of force, solenoids, latch circuits and buzzers. Common failure points for this type of educational board include burned or tripped protection diodes on the power rails, damaged MOSFETs controlling the electromagnet coil, and loose solder joints on the buzzer or latch output pins. Initial checks should verify that the 5 V/12 V supply rails are within spec, inspect all visible traces for burn marks or broken connections, and confirm that the coil driver outputs produce the expected voltage/current when a test load is applied. Post Comment

Need your Lab-Volt 91020-20 magnetism board repaired?

Ship your unit to our North Carolina repair shop for component-level diagnostics and a repair estimate. We service industrial control electronics and power systems nationwide.

• ⚙️ Board-level diagnostics – Troubleshooting beyond simple module replacement
• 🔁 Clear approval process – No repair begins without your approval
• 🧰 Expert Technicians – Decades of board-level experience
• ✅ 1-Year Warranty – Included with completed repairs

Start a Repair Request   Call 1-336-969-0110

Nationwide service • Industrial-grade testing • 1-year warranty on completed repairs

Owner-Operated • Practical Pricing • 1-Year Warranty • Nationwide Service
