Lab-Volt 91001-20 DC Fundamentals Repair Service

Professional diagnostic and board-level repair service for this Lab-Volt 91001-20 DC Fundamentals.

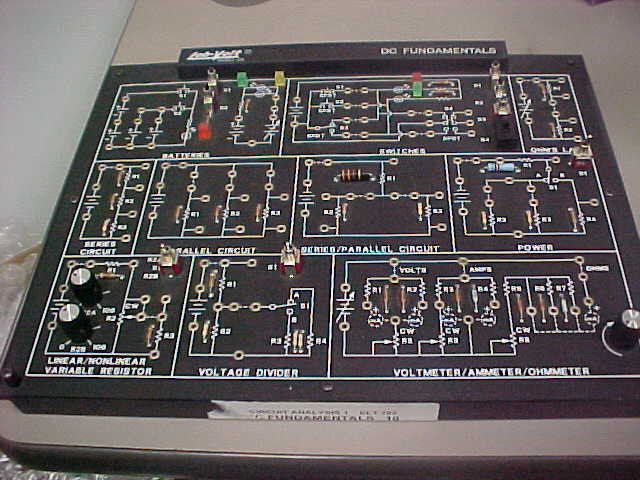

Lab‑Volt 91001‑20 is a Festo FACET training board that simulates DC circuit fundamentals for instructional use. Common failures on this model include burnt capacitors, damaged surface‑mount resistors, and broken trace connections from repeated student handling; power supply regulators may also fail under overvoltage conditions. First‑check steps: verify the 12 V input voltage and ensure it is within spec, inspect the board for visible component damage or solder bridges, and test I/O pins with a multimeter to confirm continuity and correct voltage levels. Post Comment

Need your Lab-Volt 91001-20 DC Fundamentals repaired?

Ship your unit to our North Carolina repair shop for component-level diagnostics and a repair estimate. We service industrial control electronics and power systems nationwide.

• ⚙️ Board-level diagnostics – Troubleshooting beyond simple module replacement
• 🔁 Clear approval process – No repair begins without your approval
• 🧰 Expert Technicians – Decades of board-level experience
• ✅ 1-Year Warranty – Included with completed repairs

Start a Repair Request   Call 1-336-969-0110

Nationwide service • Industrial-grade testing • 1-year warranty on completed repairs

Owner-Operated • Practical Pricing • 1-Year Warranty • Nationwide Service
