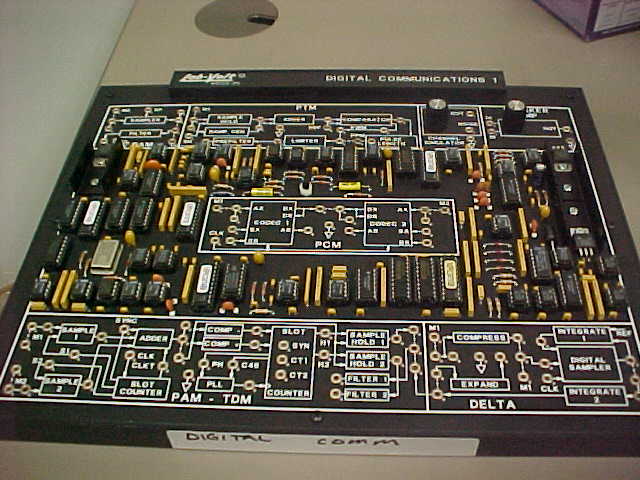

Lab-Volt 91022-20 Digital Communications 1 Repair Service

Professional diagnostic and board-level repair service for this Lab-Volt 91022-20 Digital Communications 1.

Lab-Volt 91022‑20 is a Festo FACET Digital Communications 1 training board that demonstrates modulation and multiplexing techniques (PAM, PWM, PCM, etc.). Common failure points on this class of educational boards include degraded electrolytic capacitors on the power supply rails, burnt or cracked IC packages in the modulator/demodulator sections, and loose or corroded header pins. For initial troubleshooting check that the 5 V/12 V input rails are within spec, inspect all surface‑mount components for visual damage, and verify continuity of the main signal paths (e.g., modulation output to demodulator input). If the board still fails, review any error codes or LED status indicators provided by the FACET interface. Post Comment

Need your Lab-Volt 91022-20 Digital Communications 1 repaired?

Ship your unit to our North Carolina repair shop for component-level diagnostics and a repair estimate. We service industrial control electronics and power systems nationwide.

• ⚙️ Board-level diagnostics – Troubleshooting beyond simple module replacement
• 🔁 Clear approval process – No repair begins without your approval
• 🧰 Expert Technicians – Decades of board-level experience
• ✅ 1-Year Warranty – Included with completed repairs

Start a Repair Request   Call 1-336-969-0110

Nationwide service • Industrial-grade testing • 1-year warranty on completed repairs
