Lab-Volt 91013-20 operational amplifier Repair Service

Professional diagnostic and board-level repair service for this Lab-Volt 91013-20 operational amplifier.

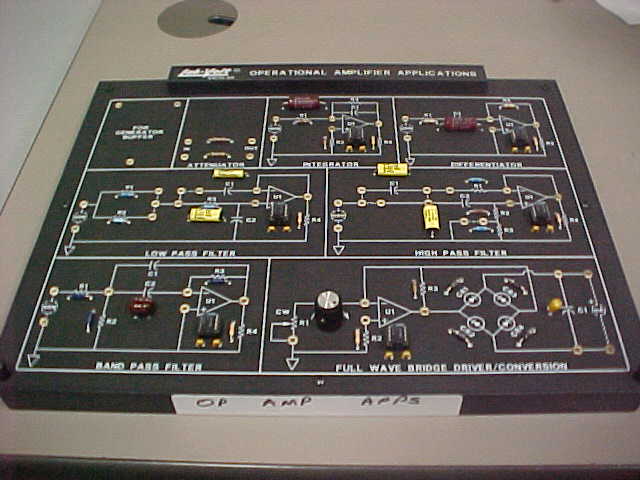

Lab‑Volt 91013‑20 is a training/industrial operational amplifier application board used in signal conditioning, filtering and instrumentation circuits. Common failure points on this class of boards include burnt or damaged op‑amps (e.g., TL072/TL081), degraded decoupling capacitors, solder joint fatigue, and power rail over‑voltage damage. Begin diagnostics by verifying the 12 V/−12 V supply rails with a multimeter, inspecting for burn marks or loose connections on the op‑amp packages, and checking the output stage with an oscilloscope for clipping or oscillation; if those checks are clean, review any error codes or test results from the associated FACET software. Post Comment

Need your Lab-Volt 91013-20 operational amplifier repaired?

Ship your unit to our North Carolina repair shop for component-level diagnostics and a repair estimate. We service industrial control electronics and power systems nationwide.

• ⚙️ Board-level diagnostics – Troubleshooting beyond simple module replacement
• 🔁 Clear approval process – No repair begins without your approval
• 🧰 Expert Technicians – Decades of board-level experience
• ✅ 1-Year Warranty – Included with completed repairs

Start a Repair Request   Call 1-336-969-0110

Nationwide service • Industrial-grade testing • 1-year warranty on completed repairs

Owner-Operated • Practical Pricing • 1-Year Warranty • Nationwide Service
