Hello there I am looking for a schematic for a servo drive The brand is SCE elettronica The model SDA 250 7A 32A peakWe have replaced some faulty ESM7545 Also replaced 2SC3076 transistors on the hybrid IC Still do not have correct power to the LM393 And have the red fault LED on I have a good unit & have swapped the top boards I am 99% sure the fault in on the bottom board Regards Jim

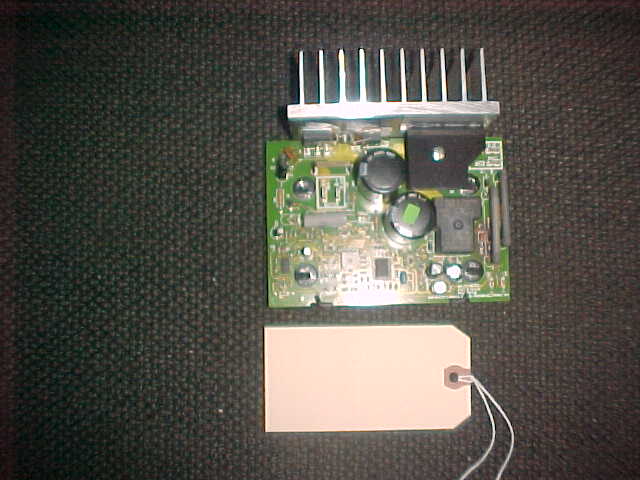

—> Purchase or Repair: Ticket Image

— Posted by Jim Adams on 2012-05-03
